Cubicle Curtain Track Model MC 800


A Unique Design In Hospital Cubicle Cutain Track



MediTrack type MC800 cubicle track with size of 20mm (W) X 30mm (H) is made of aluminium, natural anodised to 15 microns. It comes with continuous PVC liner, nylon gliders and hooks, plastic end cap, connecting bridge, overlapping joint connector and wall brackets. Matching screws are cut to various length and shape and where necessary, bended to required curve. These are fixed with sufficient hanger rods extended to the soffit of concrete slab with bracket holders and screws, all strictly in accordance with manufacturer's instructions.

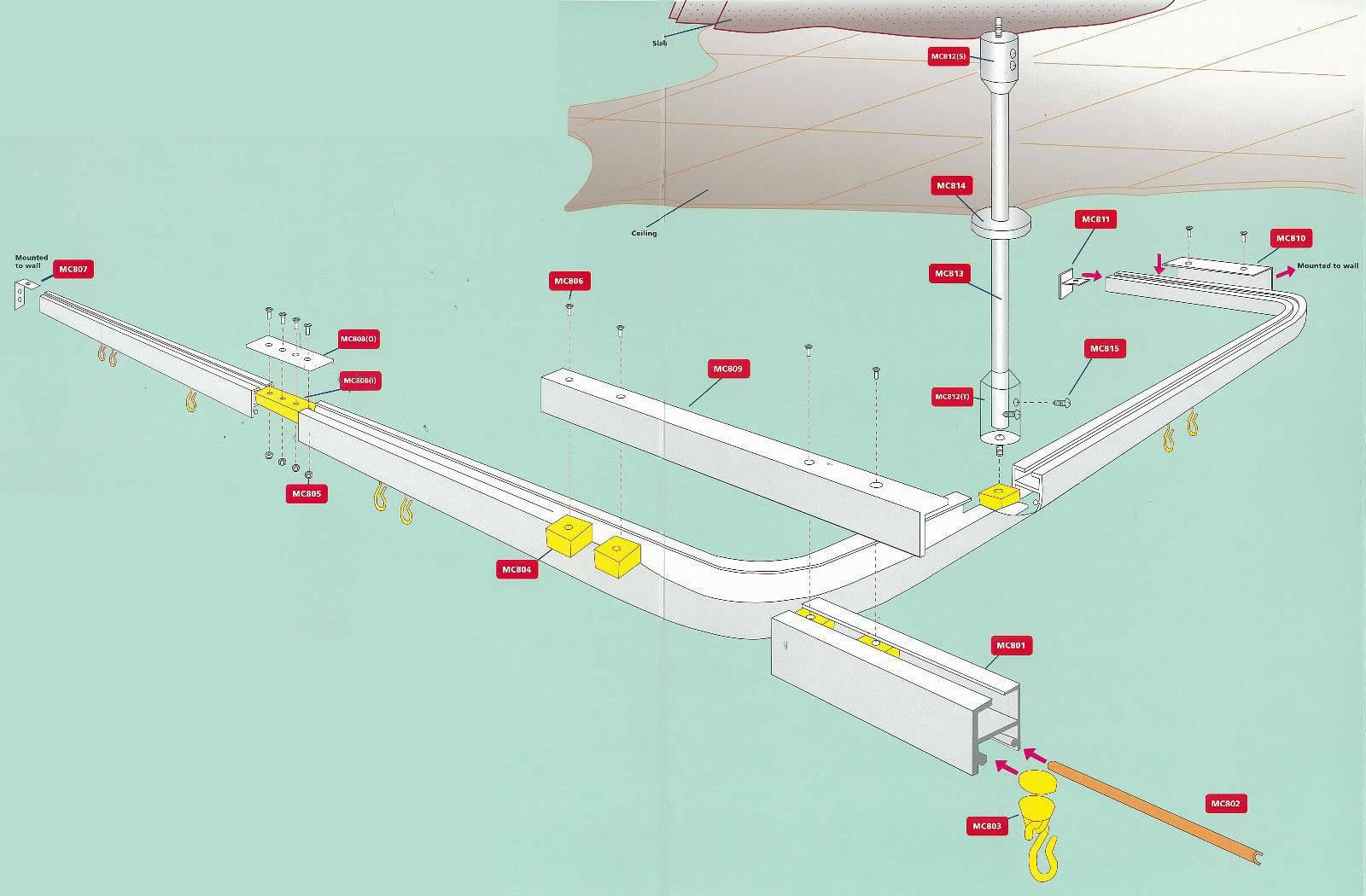

Click here for larger image.

MC801 - Aluminium track with natural anodised to 15 micron to give a tough, smooth and beautiful finish
MC802 - Continuous PVC liner to give gliders smooth and quiet run
MC803 - Nylon glider and hook
MC804 - Nylon nut holder
MC805 - M.S. lock nut
MC806 - M6 counter sunk screw
MC807 - Galvanised 'L' angle
MC808(O) - M.S. outer connecting bridge
MC808(I) - Nylon inner connecting bridge
MC809 - Aluminium overlapping connector
MC810 - Aluminium side wall bracket
MC811 - End cap
MC812(T) - PVC rod sleeve
MC812(S) - PVC rod sleeve
MC813 - Aluminium hanger rod
MC814 - Hanger rod collar
MC815 - Self drilling screw

Nylon gliders and hooks

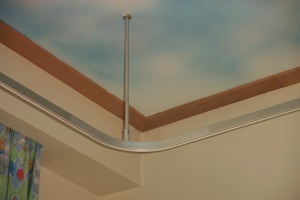

Rail attachment

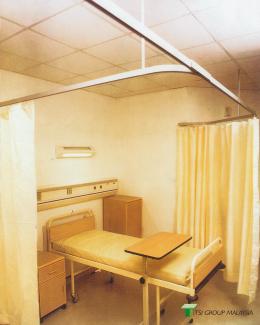

The complete configuration
