I.V. Track Model MC 900


A Creative Design In Hospital I.V. Track System

• I.V. track section at 35mm (W) X 19.2mm (H).
• I.V. track finish shall be 15 micron, natural anodised.
• I.V. track complete with end cap, connectors and miscellaneous fittings as required.
• MediTrack I.V. carrier trolley comes with brake system that is set when load is applied. One carrier to a set of I.V. support track.
• MediTrack bottle holder with 16" telescoping vertical adjustability and four collapsible I.V. station located at telescoping shaft and one rotating I.V. station located at bottom of shaft.
• One bottle holder to a set of I.V. support track.
• Track system to be installed at flush ceiling level.

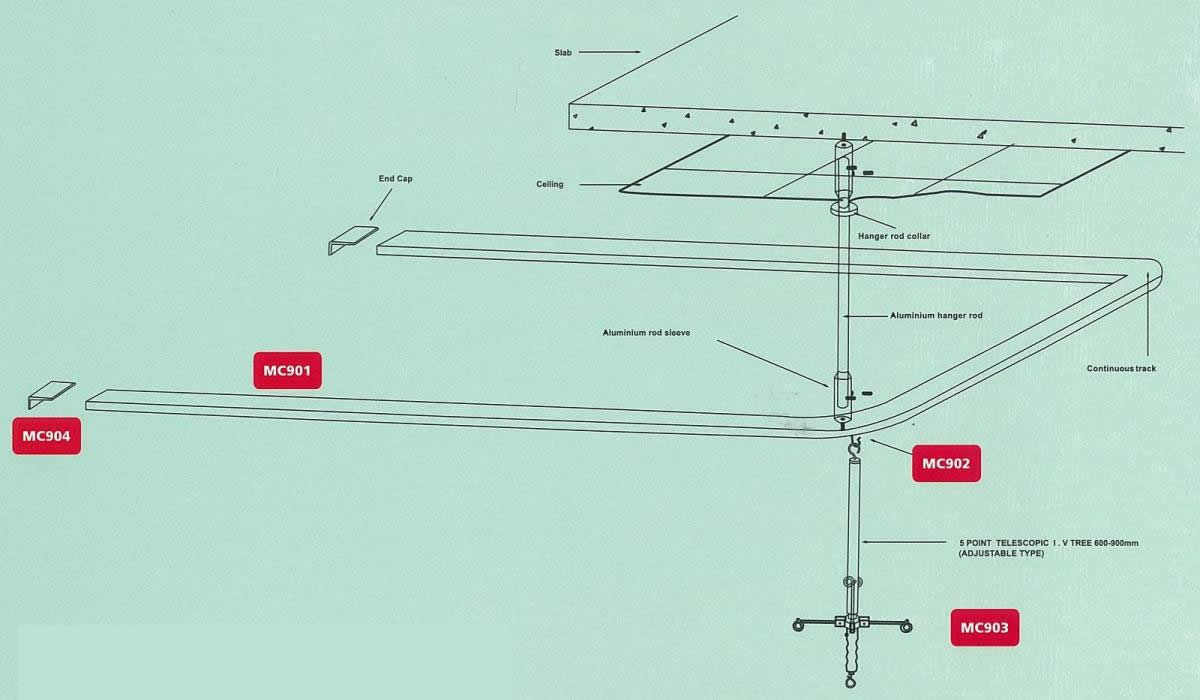

Click here for larger image.

MC901 - Aluminium track with natural anodised to 15 micron to provide a tough, smooth and beautiful finish
MC902 - I.V. locking carrier
MC903 - I.V. tree (adjustable 600mm - 900mm)
MC904 - I.V. end cap

I.V. track cross section



Locking I.V. carrier



5 point telescopic I.V. tree (adjustable 600mm - 900mm)



Typical plan
